IMPALA EXTENDED-RANGE ESP SYSTEM
The Impala extended-range ESP system can handle flowrates from 377–14,150 bbl/d (60 m3/d–2250 m3/d). This wide operating range enables our customers to run a single ESP in wells with fluctuating or rapidly declining production rates (as in shale plays, tight reservoirs, and deeper zones) instead of having to replace the ESP as production levels change.
BENEFITS
Low axial force pump stages enable the ESP to perform over a wider production range
Superior efficiency across a wide operating range reduces downtime and power consumption
More lift per stage lowers operating temperatures and extends ESP runlife
applications
- Conventional, unconventional, and maturing oil wells
- Reservoirs with unstable or rapidly declining production rates
capabilities
- Flowrate ranges from 377–14,150 bbl/d (60 m3/d–2250 m3/d)
- Fluid head ranges from 11,483–9,843 ft (3500–3000 m)
- Efficiency ratings from 58–76%
features

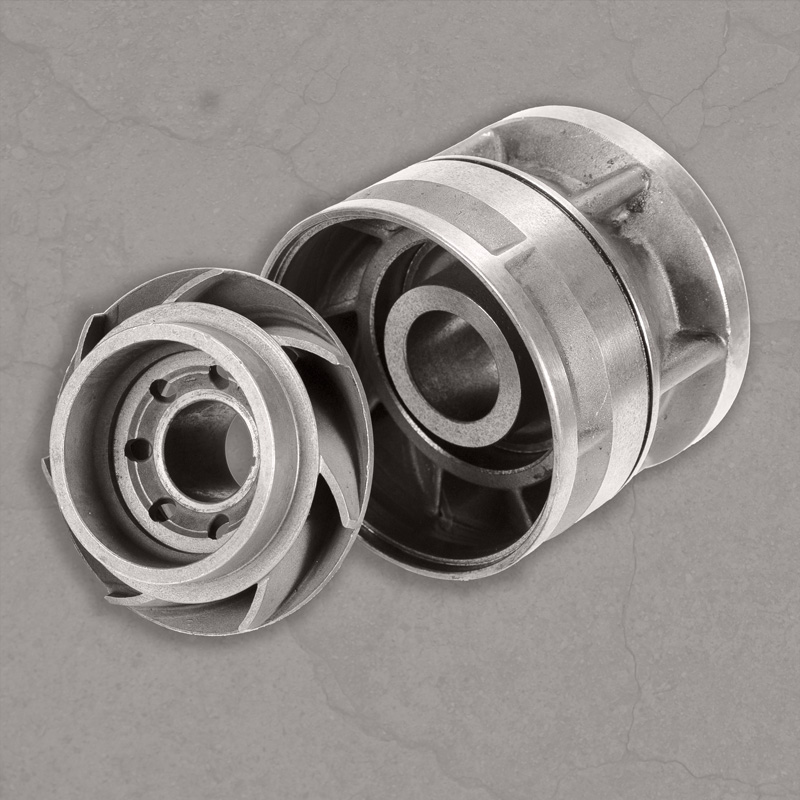

- Holes drilled in the top impeller disk create a slight crossflow that reduces axial force, improves impeller float, and extends the operating range
- Wear-resistant design improves long-term performance and enables longer runlife
The Impala electrical submersible pumping (ESP) system delivers the flexibility and performance needed to maximize production and recovery in conventional and unconventional wells with unstable and rapidly declining production rates. It enables you to minimize ESP changeouts and reduce production spend over the life of the well.
Like all Novomet ESPs, the Impala system handles thrust conditions effectively to reduce workovers and extend runlife. With the ability to continue pumping across a wide range of flowrates, this system provides operational stability even as conditions fluctuate. The result is a reliable, dependable ESP that keeps producing longer in flex-flow, low-flow, and declining-flow wells.
TECHNICAL CHARACTERISTICS
|
Size (RU) |
Size |
Capacity |
Head |
Efficiency rate |
|
5 |
3.62 in. |
453-3,774 bbl/d (@60Hz) |
11,483 ft |
58-66% |
|
92 mm |
60-700 m3/d (@50Hz) |
3500 m |
||
|
5A |
4.06 in. |
755-5,283 bbl/d (@60Hz) |
11,483 ft |
67-71% |
|
103 mm |
100-700 m3/d (@50Hz) |
3500 m |
||
|
7A |
5.35 in. |
2,264-16,982 bbl/d (@60Hz) |
9,843 ft |
67-76% |
|
136 mm |
300-2250 m3/d (@50Hz) |
3000 m |
